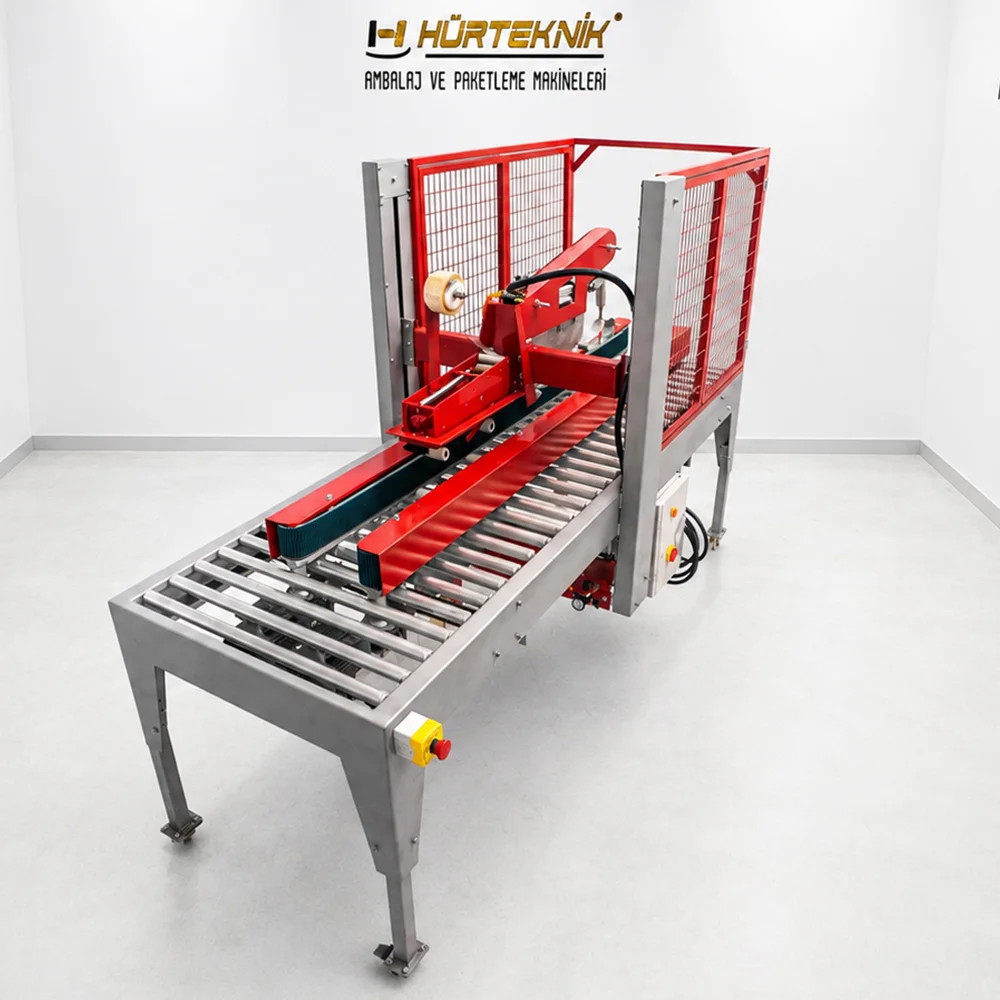

Closed Box Taping Machine
The parcel taping machine accelerates the packaging process and reduces labor force by quickly and properly taping the upper and lower parts of the parcels.
- Energy consumption: 2X.0.18 kw 380 Volt 3 Phase
- Belt speed: 20 mt/min.
- Automatic top cover closing system M available
- Box size width: 200 – 450 mm (Min.-Max)
- Carton size height: 150 – 400 mm (Min-Max)
- Carton length: 250 mm – ……………..
- Height: Adjustable
- Used tape width: 25 – 50 mm
- Length of tape used: 40 – 1000 m
- Transportation: 4 wheels with swivel and brake.
Technical Specifications
| Energy consumption | 2 x 0.18 kW - 380 Volt - 3 Phase |
|---|---|
| Tape speed | 20 mt/minute |
| Automatic top cover closing system | Available |
| Package size - Width | 200 - 450 mm (Min. - Max.) |
| Package size - Height | 150 - 400 mm (Min. - Max.) |
| Package length | Minimum 250 mm |
| Height | Set |
| Used tape width | 25 - 50mm |
| Tape footage used | 40 - 1000 meters |
| Transport | 4 swivel casters with brake |
What is a Closing Carton Taping Machine & What Does It Do?
Closing carton taping machines are special machines that can tape cartons from both the bottom and top surfaces at the same time. They make cartons with the bottom flap already closed ready for packaging in a single pass. In this way, carton opening and taping are not done separately, saving labor and time.
Industrial Closing Carton Taping Machine Working Principle
Cartons are placed at the machine entrance. When taken inside, the bottom flaps are closed automatically with pneumatic pistons or rollers. Then the top and bottom are taped simultaneously. Tape width can be adjusted with 50-100 mm options. Conveyor integration is available for high-volume production.
Closing Carton Preparation Taping Machine Advantages
It provides complete packaging; it eliminates the separate process for the bottom flap. It reduces labor needs and performs error-free taping. It quickly adapts to different carton sizes; with a 1000-meter tape capacity, less downtime is required. It is suitable for different scales with semi-automatic and fully automatic models.
Usage Areas of Closing Carton Taping Machines
It is especially used in lines that prepare pallet cartons in sectors such as ready-to-wear, white goods and heavy industry. Closing systems increase packaging quality and raise warehouse efficiency.
