HYS-120

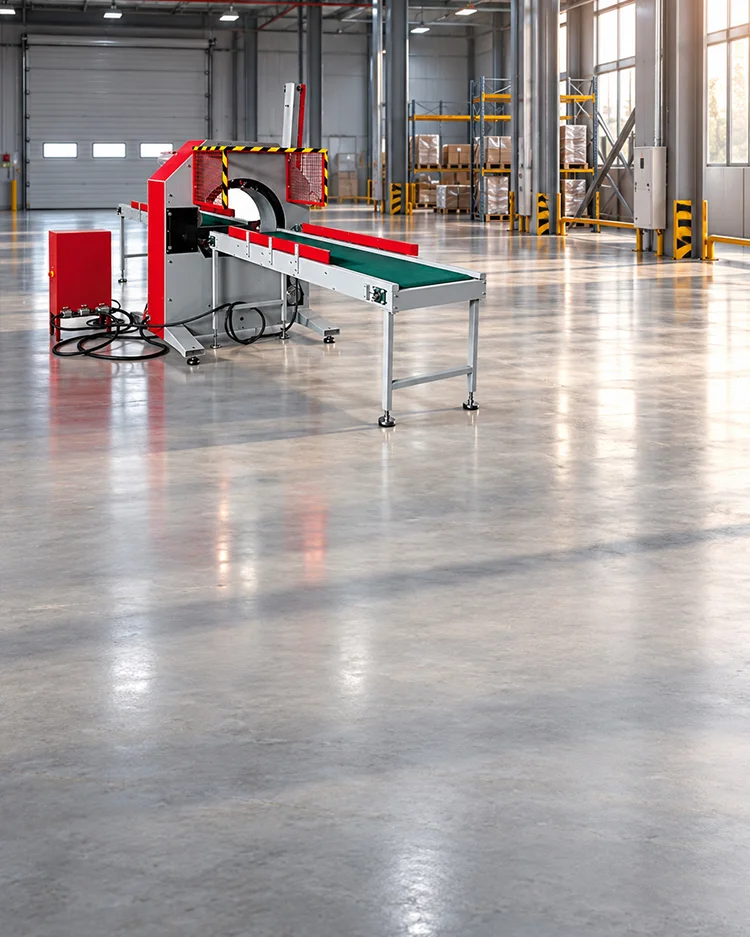

Horizontal Stretch Wrapping Machine

Horizontal Stretch Wrapping Machine is ideal for wrapping your products quickly and safely. It saves time and increases packaging efficiency.

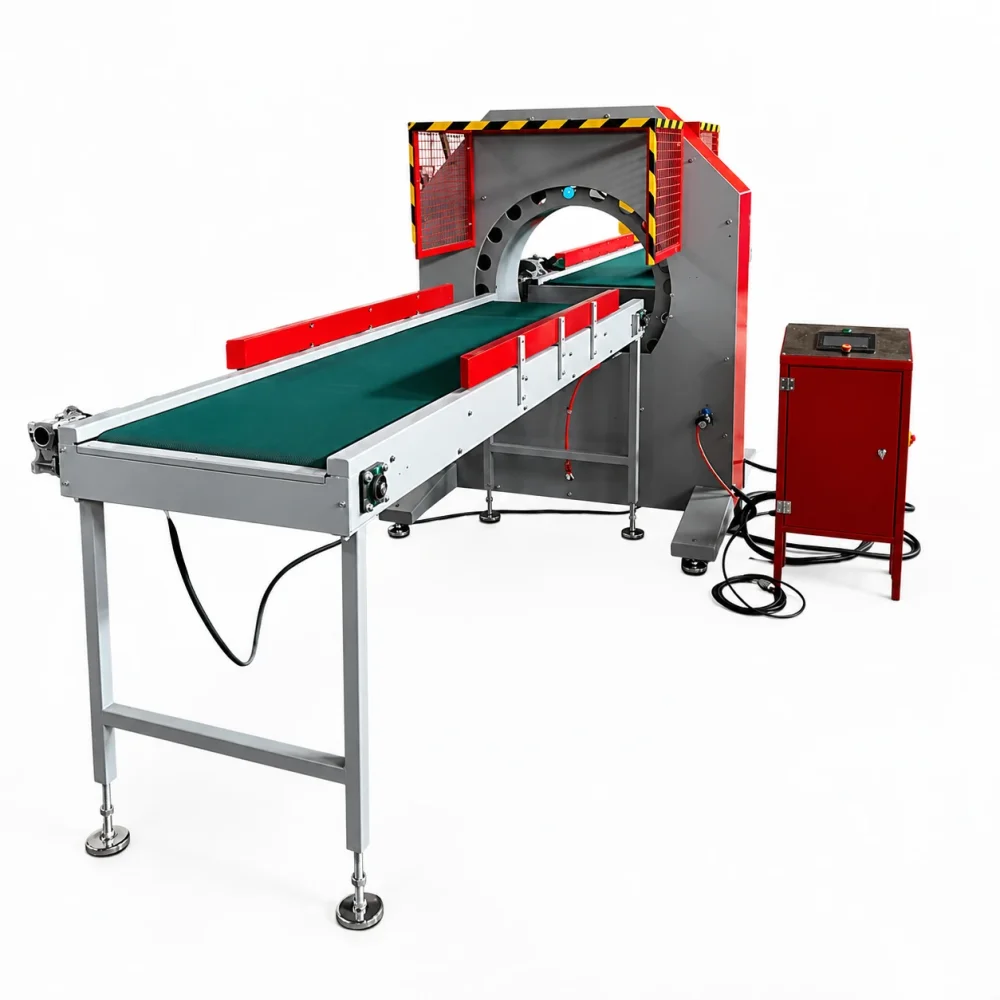

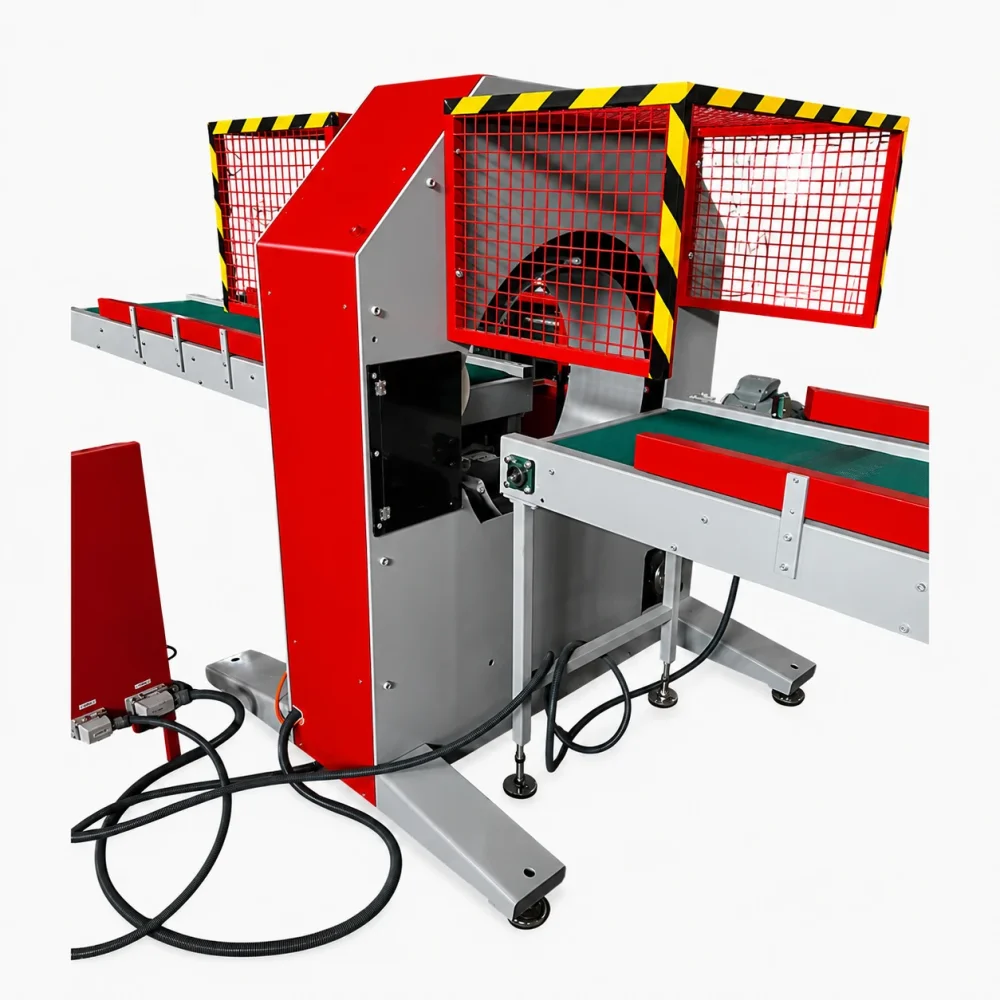

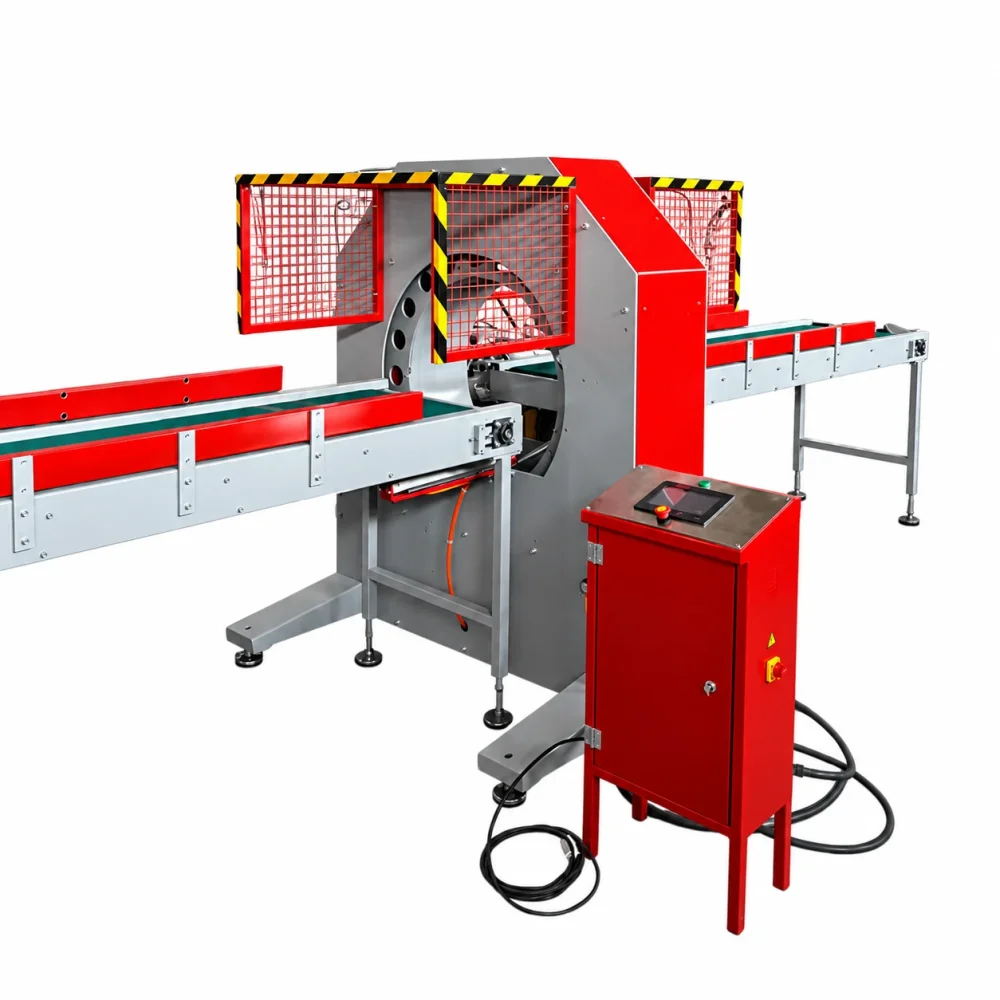

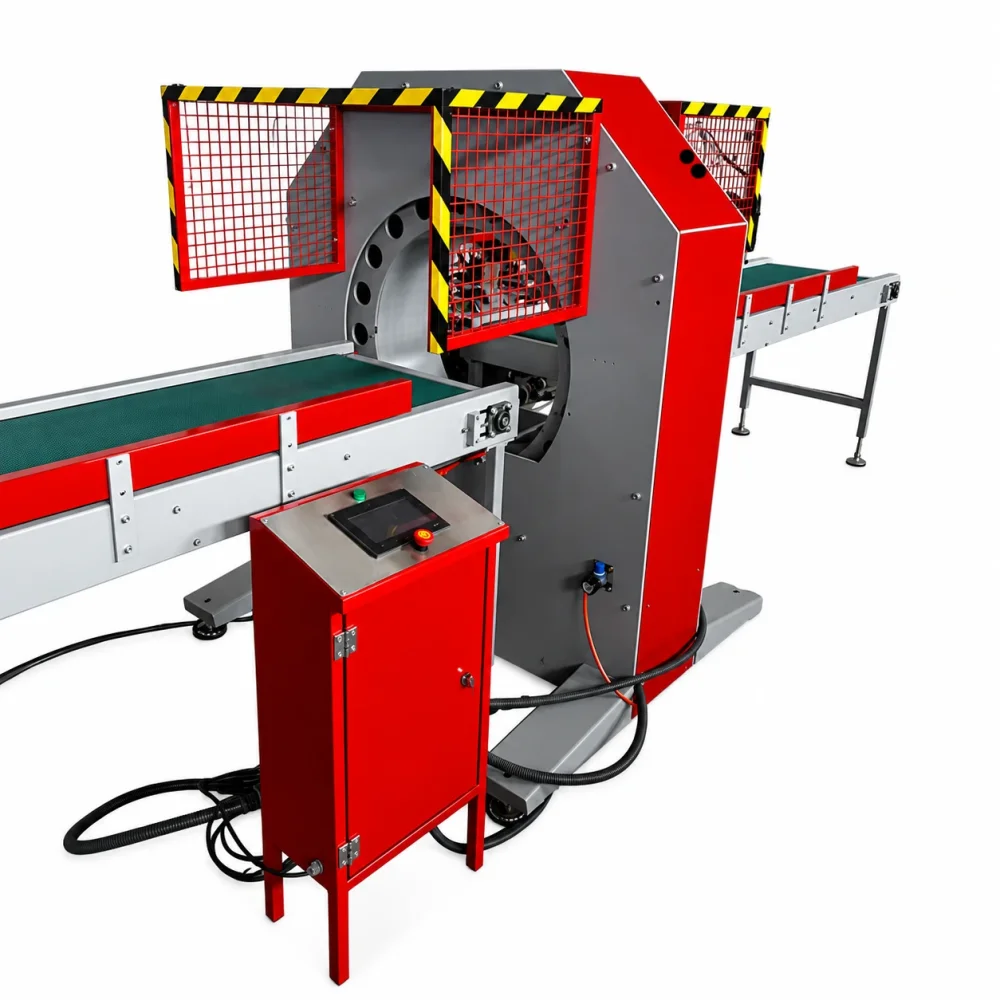

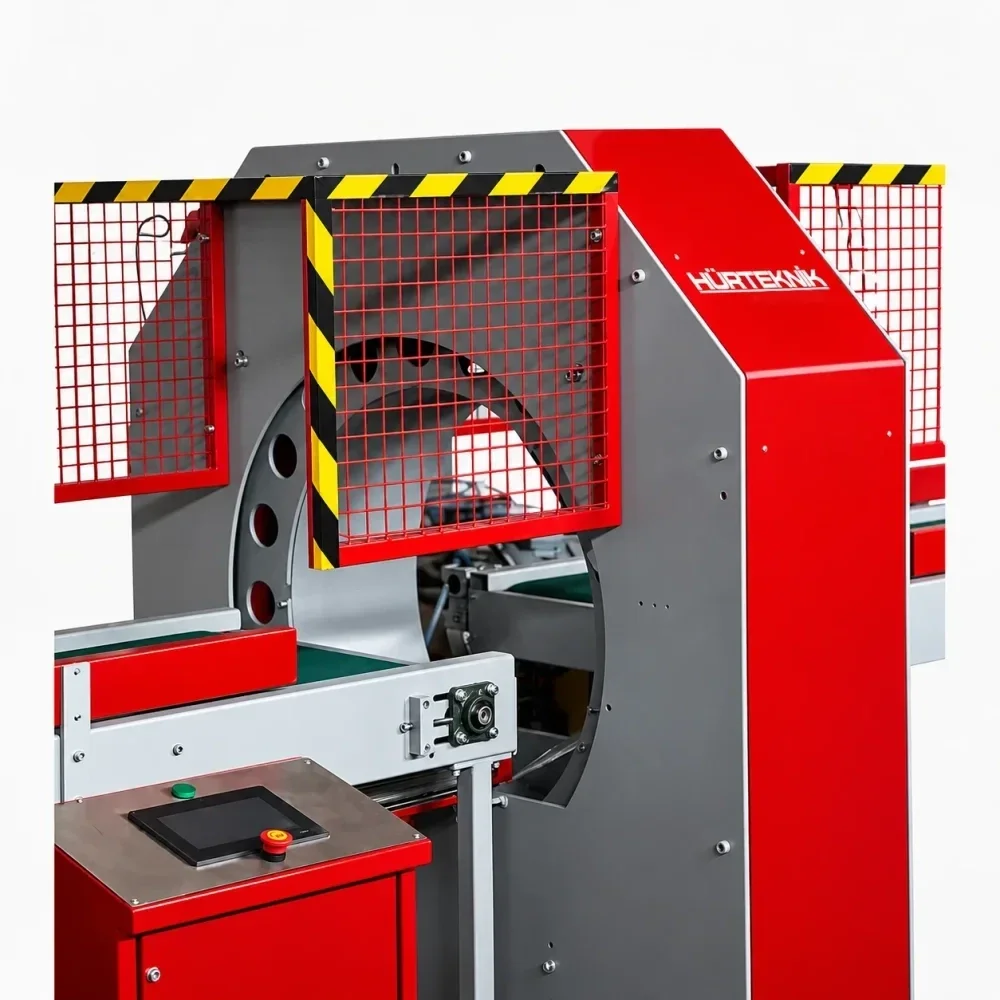

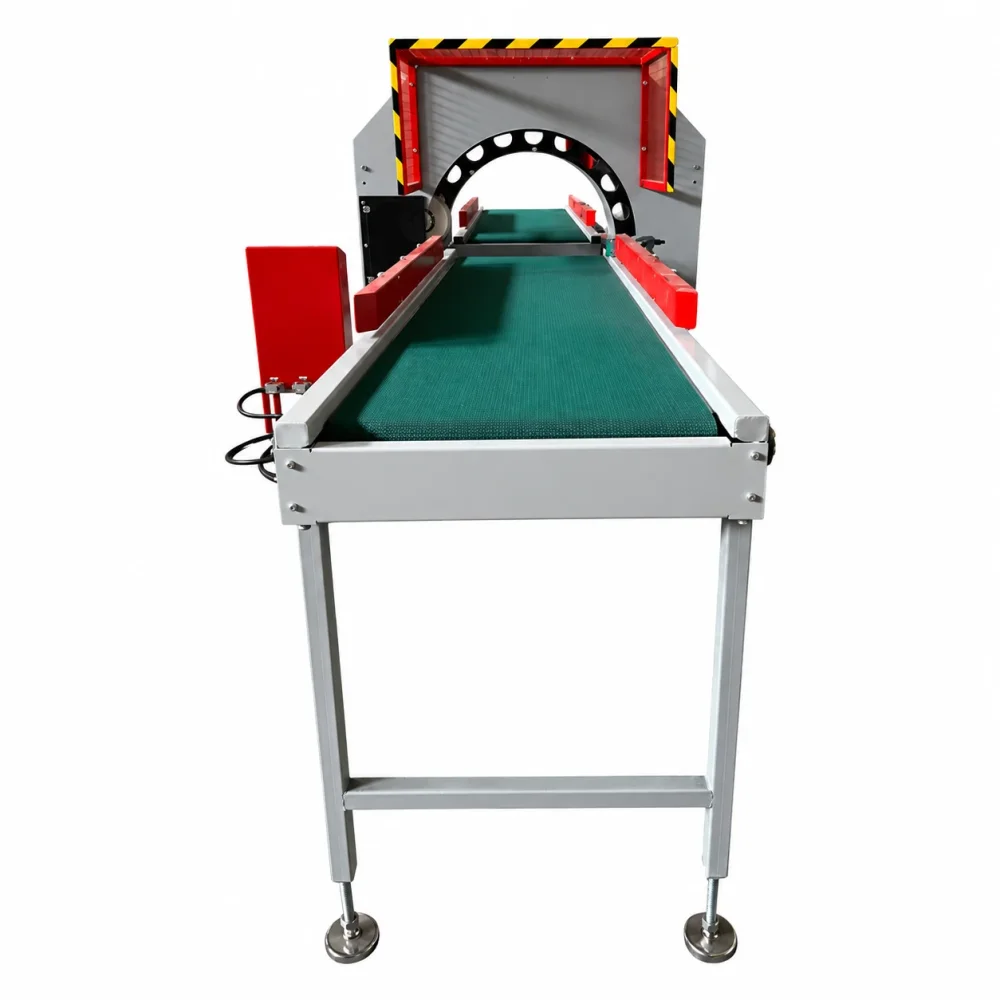

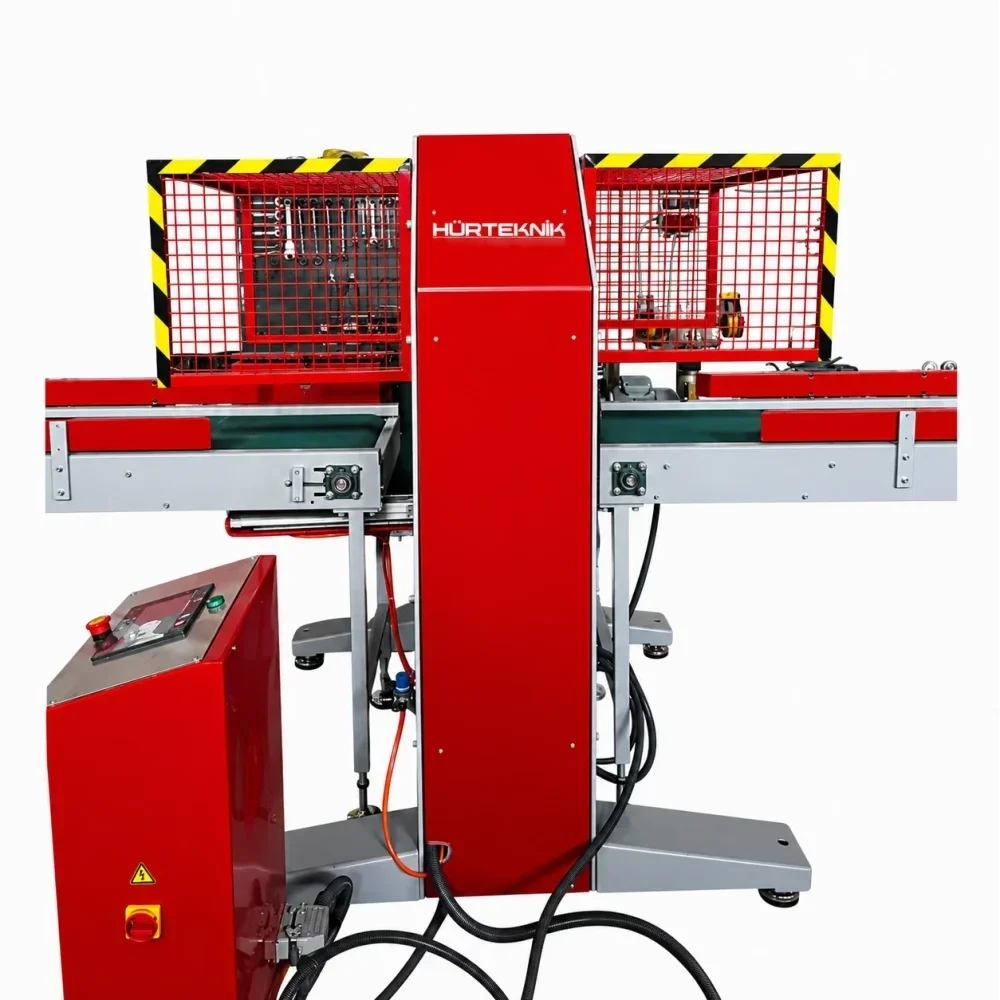

Horizontal Stretch Wrapping Machine

Hürteknik Horizontal Stretch Machine allows your doors, windows, stairs, PVC, pipes, profiles, etc. to be packaged in high quality and protected against external impacts and corrosion. Unlimited changes can be made according to customers' requests, demands and product dimensions, due to the advantage of being a manufacturer.

Max: Width: 50cm Height: 50cm (optional)
Min: Width: 20cm Height: 20cm (optional)
Entry and exit conveyors: 200cm (optional)
Film width to be used: 25 cm
Starting floor counter: Available
End modifier available: Available
Pre-tensioning system: Mechanical pre-tensioning
Disk speed: Electronic speed controlled (Schneider)
Departure and stance softening: Electronic
Rotating disk speed: 1-30 rpm
Stretch wrapping system: Electronic speed controlled for frequent or infrequent wrapping

Technical Specifications

Maximum product size	Width: 50 cm - Height: 50 cm (Optional)
Minimum product size	Width: 20 cm - Height: 20 cm (Optional)
Entry / exit conveyors	200 cm (Optional)
Film width used	25cm
Starting floor counter	Available
End floor counter	Available
Pre-tensioning system	Mechanical pre-tensioning
Disk speed setting	Electronic speed control (Schneider)
Takeoff and stance softening	Electronics
Rotating disk speed	1-30 rpm
Stretch wrapping system	Electronic speed control for tight or loose winding

What is a Horizontal Stretch Wrapping Machine & What Does It Do?

The horizontal stretch machine wraps long and narrow products such as pipes, profiles, marble and doors on the horizontal axis. Products are placed horizontally into the machine and film is applied around them. This system offers practical packaging for mold parts or long boxed products.

Horizontal Stretch Wrapping Machine Working Principle

The product is fed horizontally onto the machine table by the operator or conveyor. As the table rotates, film is wrapped around the product. Thanks to the film's pre-stretching system, the film is applied at the desired tension on each rotation. When wrapping is complete, the machine cuts and seals the film. The ergonomic design makes positioning the product easier.

Advantages of Horizontal Stretch Wrapping Machines

It prevents long products from breaking or scratching during transport. Every length of packaging is completed at the same tension. Thanks to horizontal wrapping, transport safety increases. Table diameter and rotation speed can be adjusted according to products of various lengths. Also known as orbital stretch wrapping.

Usage Areas of the Horizontal Stretch Machine

It is used on long parts such as PVC joinery, profiles, pipes, marble and furniture panels. It is preferred in the construction and metal industry, and in door/window manufacturing to provide protection from impact and corrosion.
