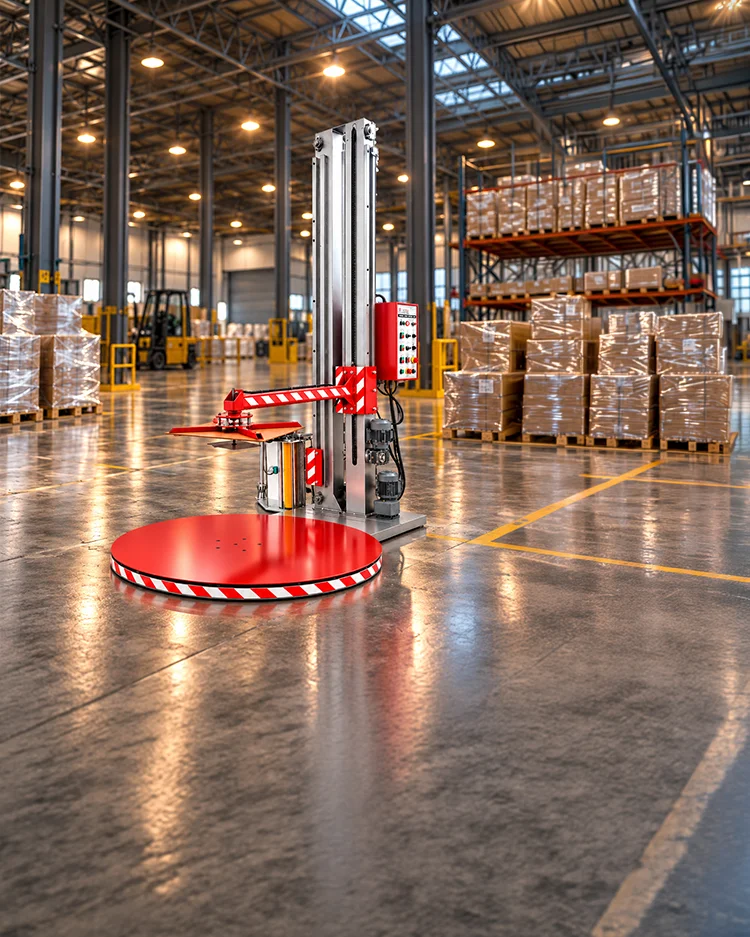

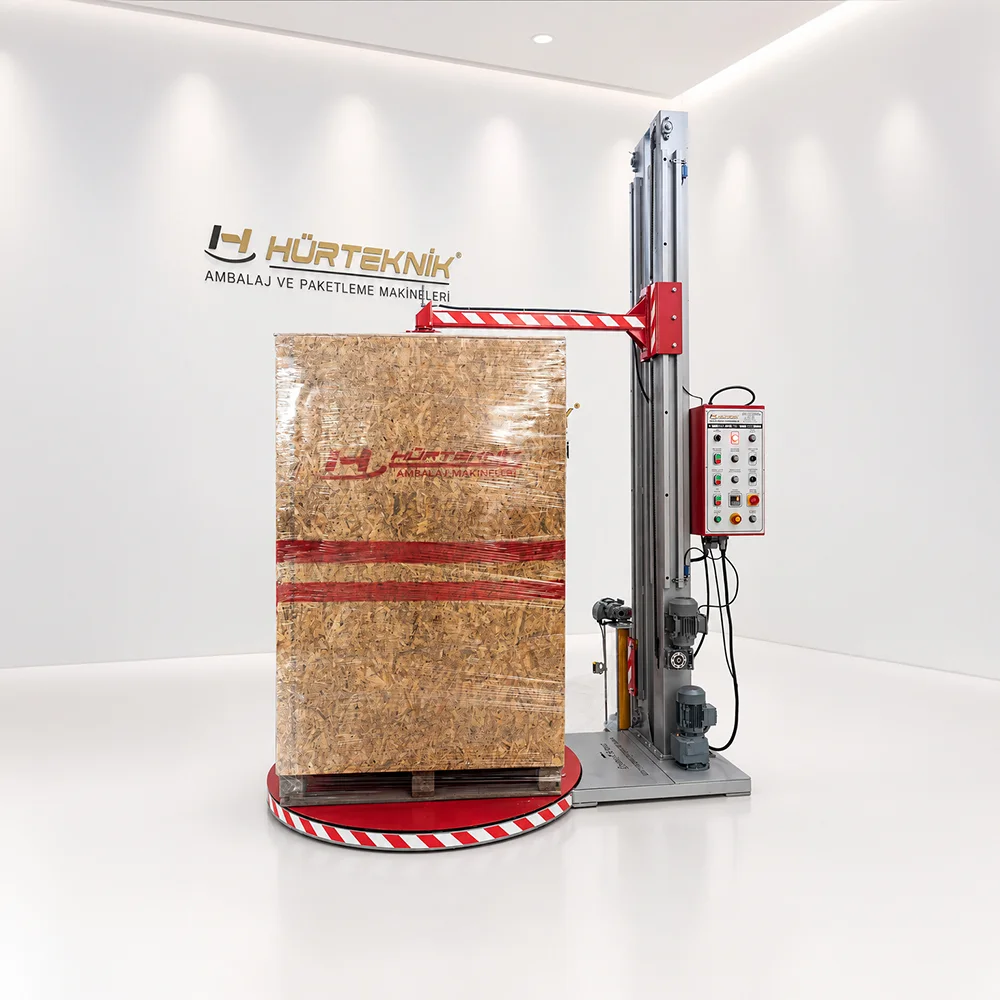

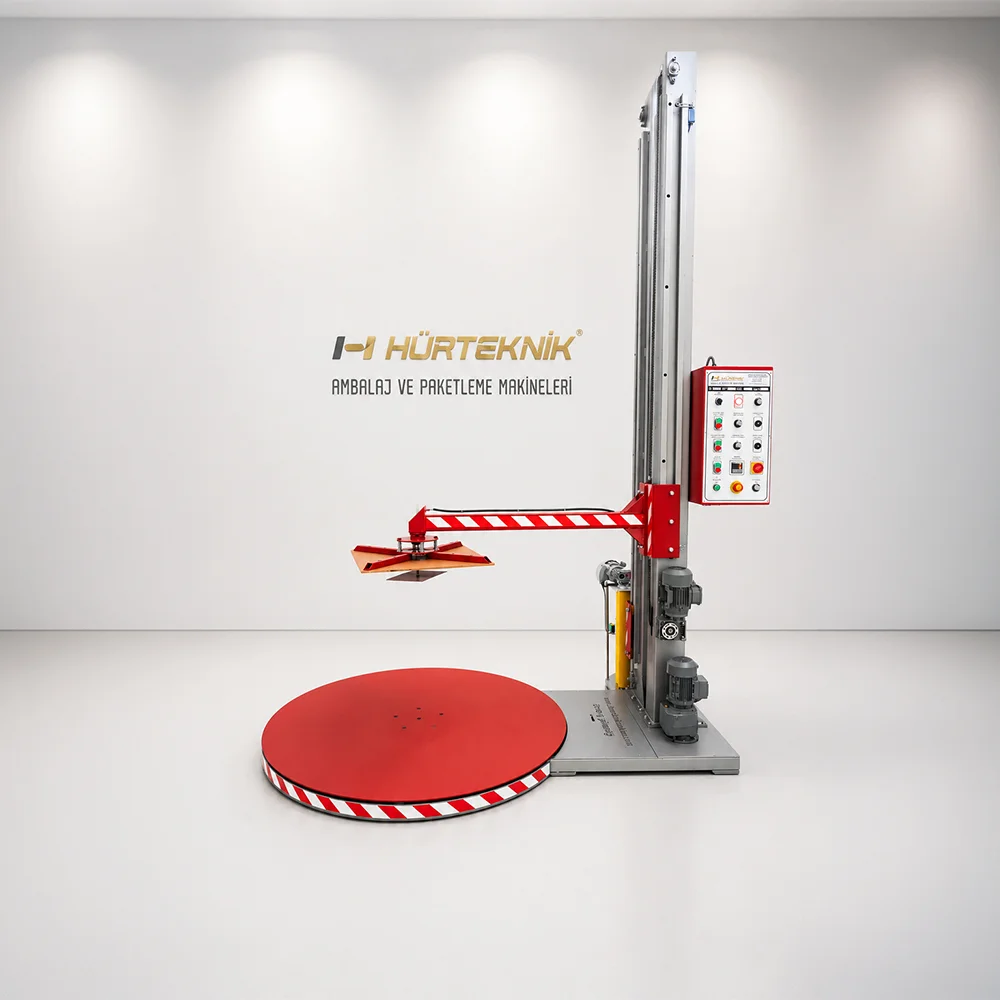

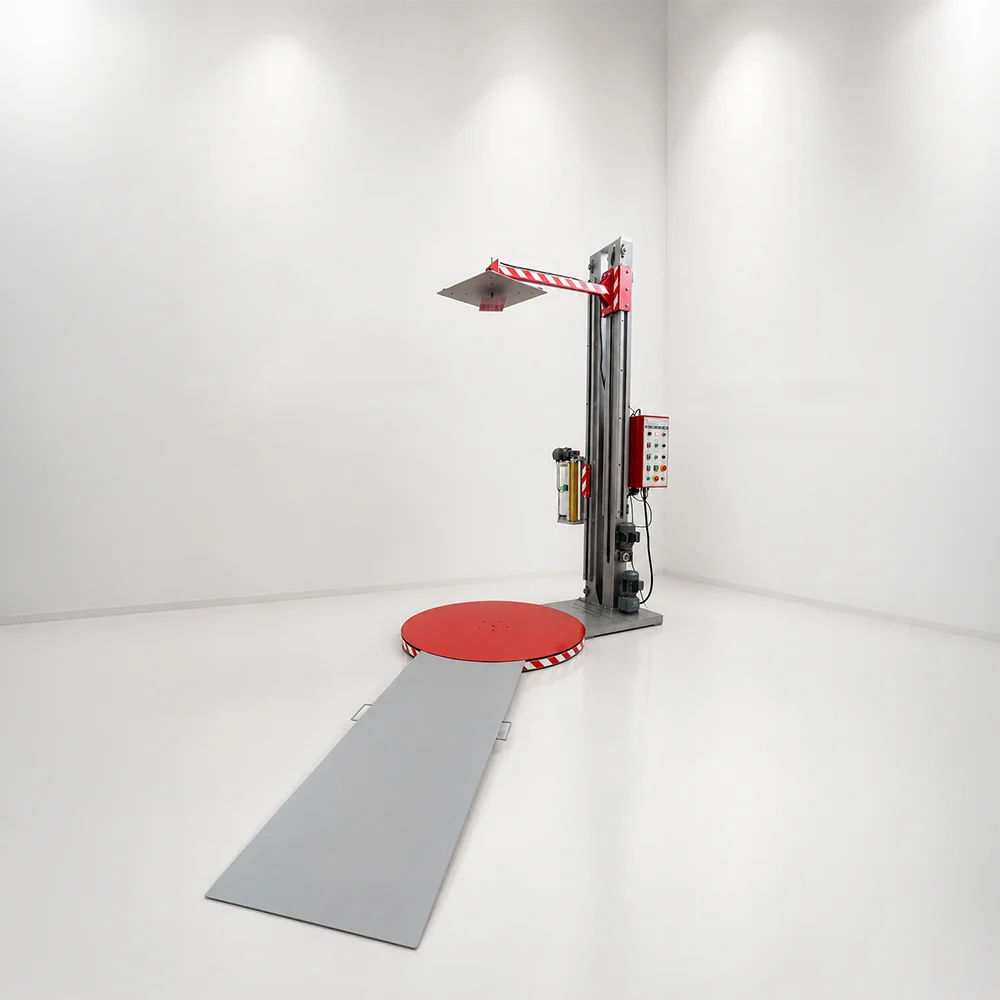

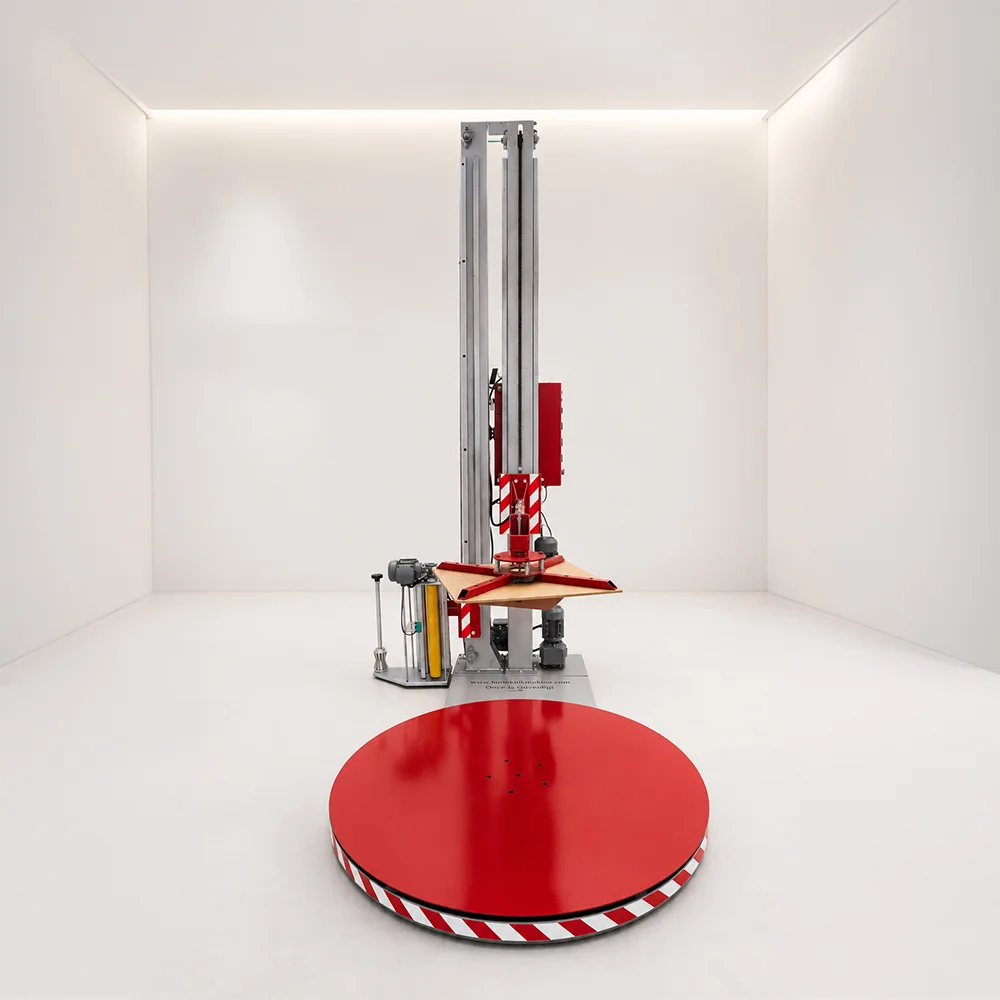

Top Press Stretch Wrapping Machine
Pallet stretch wrapping machine saves time by automatically wrapping your loads and protects the products safely against impacts and disintegration.
It also offers special solutions for different business needs with its top-pressed pallet stretch wrapping machine and printed table stretch wrapping machine options. These systems increase the stability of the loads and also improve the packaging quality. Optionally, more precise and controlled winding can be achieved with top pressure stretching machine models.
- Rotary load capacity: 1.500 kg (OPTIONAL 2.000-2.500-3.000 KG)
- Rotary table diameter: 1.500 mm (Optional 1.650-1.800-2.000-.2.200 mm)
- Tower height: 2.500 mm (Optional 3.000 – 3.500 mm)

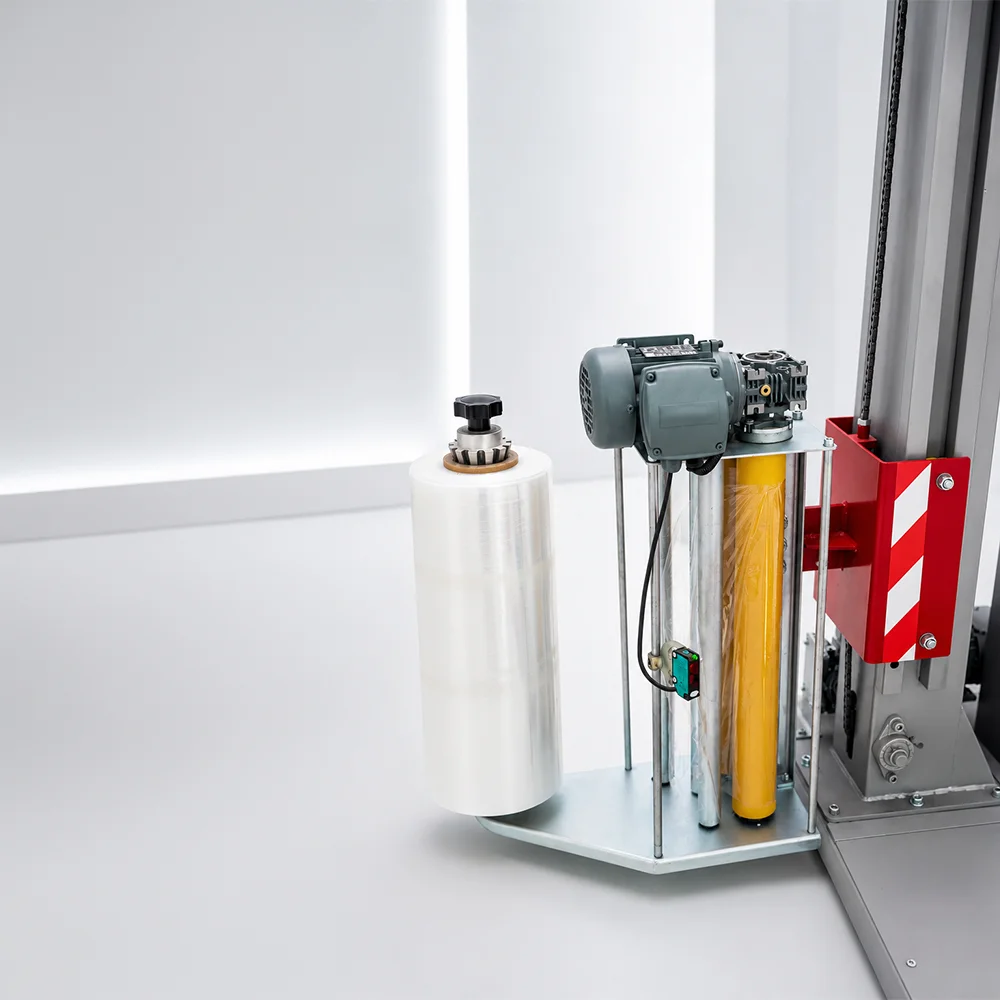

- Pre-tensioning system: Motorized pre-tensioning system with electronic speed control
- Tray speed adjustment: Electronic speed controlled
- Departure and stance softening: Electronic
- Top printing system: Motorized speed controlled
- Tower elevator speed adjustment: Electronic speed controlled
- Rotary table speed: 1-15 rpm
- Electricity consumption: 0.75 kw
- Film width used: 50 cm
- Automatic altitude reading: Available
Technical Specifications
| Rotating load capacity | 1.500 kg (Optional 2.000 - 2.500 - 3.000 kg) |
|---|---|
| Turntable diameter | 1.500 mm (Optional 1.650 - 1.800 - 2.000 - 2.200 mm) |
| Tower height | 2.500 mm (Optional 3.000 - 3.500 mm) |
| Pre-tensioning system | Motorized pre-tensioning system with electronic speed control |
| Tray speed adjustment | Electronic speed control |
| Takeoff and stance softening | Electronics |
| Top printing system | Motorized speed controlled |
| Tower elevator speed adjustment | Electronic speed control |
| Rotary table speed | 1-15 rpm |
| Electricity consumption | 0.75kW |
| Film width used | 50cm |
| Automatic altitude reading | Available |
What is a Top Pressure Pallet Stretch Wrapping Machine & What Does It Do?
Top pressure pallet stretch machines increase load stability by applying additional pressure from the top during packaging, especially on high pallets. While the product is being wrapped on the turntable or rotary arm, the top pressure arm applies constant pressure; thus, even tall and unstable loads are less likely to slip or tip over during transport. This system helps the pallet to be wrapped more flatly and tightly by applying controlled tension to the upper part of the load.
Top Pressure Pallet Stretch Wrapping Machine Working Principle

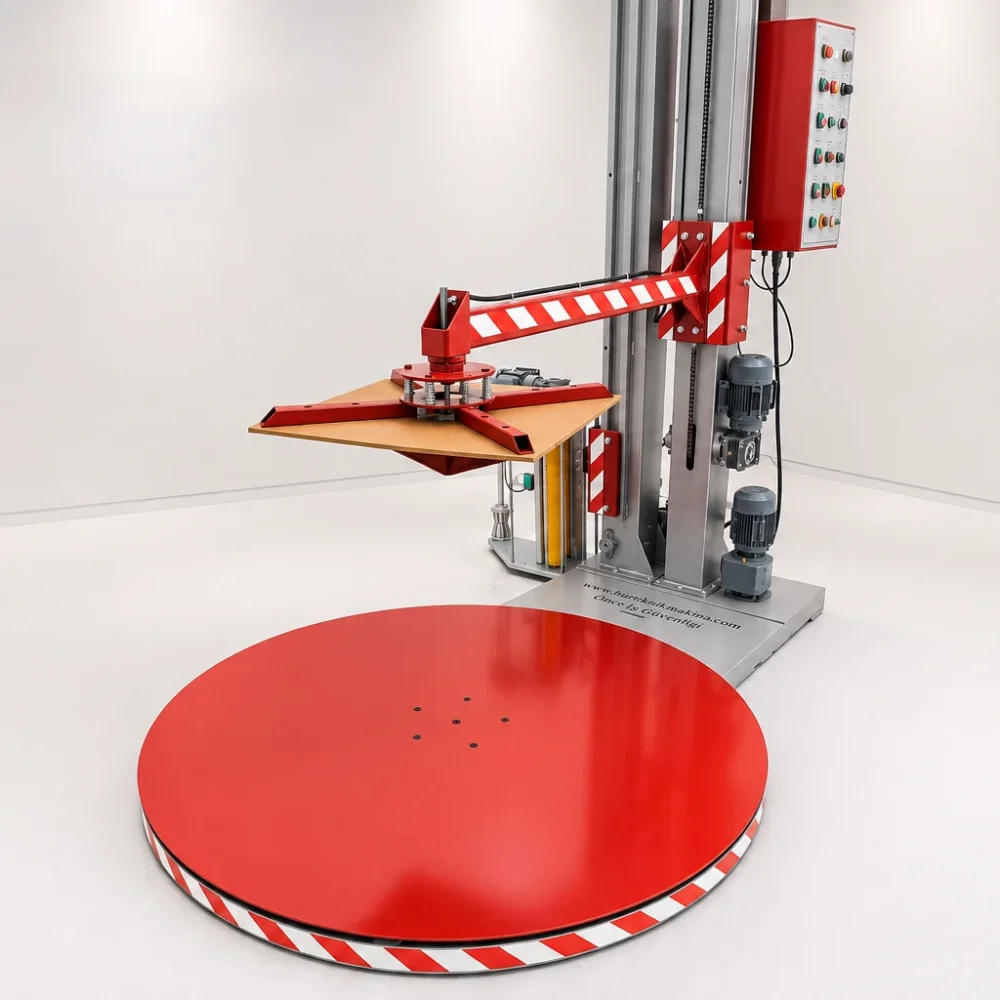

While pallets are wrapped as in traditional stretch wrapping machines, in the top pressure model there is a press cylinder that descends onto the upper part of the load. This cylinder presses the load slightly forward, preventing products from sliding over each other. As a result, the packaging looks tidier, and depending on the pallet height, the film tension is distributed more homogeneously. It especially increases safety in warehouses with high racking systems.
Top Pressure Pallet Wrapping Machine Types
Top pressure versions are available in flat and turntable models. An adjustable top pressure system is offered for different pallet sizes. Thanks to height-adjustable cylinders, pressure can be adjusted according to the pallet size. As Hürteknik, we develop fully automatic top pressure models with height sensors.
Advantages of Top Pressure Pallet Stretch Wrapping
Top pressure wrapping reduces the risk of deformation in the upper layers of the load during transport. It improves the packaging appearance and ensures that materials on top of the pallet always remain tight. It provides extra safety during transport and storage. For high pallets, it performs much faster and more error-free packaging compared to manual film wrapping.
Usage Areas of Top Pressure Pallet Stretch Wrapping
It is especially preferred in warehouse and logistics centers that use high racking systems. It is ideal in production facilities where high loads such as construction materials, construction materials, automotive part pallets and paper bobbins need to be packaged safely.
