Pallet Stretch Wrapping Machine
Pallet stretch wrapping machine wraps pallets tightly, ensuring safe transportation of products, reducing labor force and increasing storage efficiency.
Pallet stretching machine models, which offer high performance in industrial packaging processes, stand out with their durability and ease of automation. Depending on the need, solutions suitable for different sizes and capacities are offered with table stretch wrapping machine and table stretch wrapping machine options.
- Rotary load capacity: 1.500 kg (OPTIONAL 2.000-2.500-3.000 KG)
- Rotary table diameter: 1.500 mm (Optional 1.650-1.800-2.000-.2.200 mm)
- Tower height: 2.500 mm (Optional 3.000 – 3.500 mm)
- Pre-tensioning system: Motorized pre-tensioning system with electronic speed control
- Tray speed adjustment: Electronic speed controlled
- Departure and stance softening: Electronic
- Top printing system: Motorized speed controlled
- Tower elevator speed adjustment: Electronic speed controlled
- Rotary table speed: 1-15 rpm
- Electricity consumption: 0.75 kw
- Film width used: 50 cm
- Automatic altitude reading: Available
Technical Specifications
| Rotating load capacity | 1.500 kg (Optional 2.000 - 2.500 - 3.000 kg) |
|---|---|
| Turntable diameter | 1.500 mm (Optional 1.650 - 1.800 - 2.000 - 2.200 mm) |
| Tower height | 2.500 mm (Optional 3.000 - 3.500 mm) |
| Pre-tensioning system | Motorized pre-tensioning system, electronic speed control |
| Tray speed adjustment | Electronic speed control |
| Takeoff and stance softening | Electronics |
| Tower elevator speed adjustment | Electronic speed control |
| Rotary table speed | 1-12 rpm |
| Electricity consumption | 0.75kW |
| Film width used | 50cm |
| Automatic altitude reading | Available |
What is a Pallet Stretch Wrapping Machine & What Does It Do?
Pallet stretch wrapping machines wrap products placed on a pallet with stretch film, protecting them against slipping, tipping over and external factors during transport and storage. These machines increase the stability of palletized loads and prevent shipping damage. In industrial packaging lines, compared to manual stretch film use, they enable high-strength packaging with less film consumption.
Superior protection: Stretch machines protect products from dust, moisture and impacts; they reduce damage rates and lower logistics costs.
Efficiency: With automatic wrapping, labor is saved and packaging speed increases.

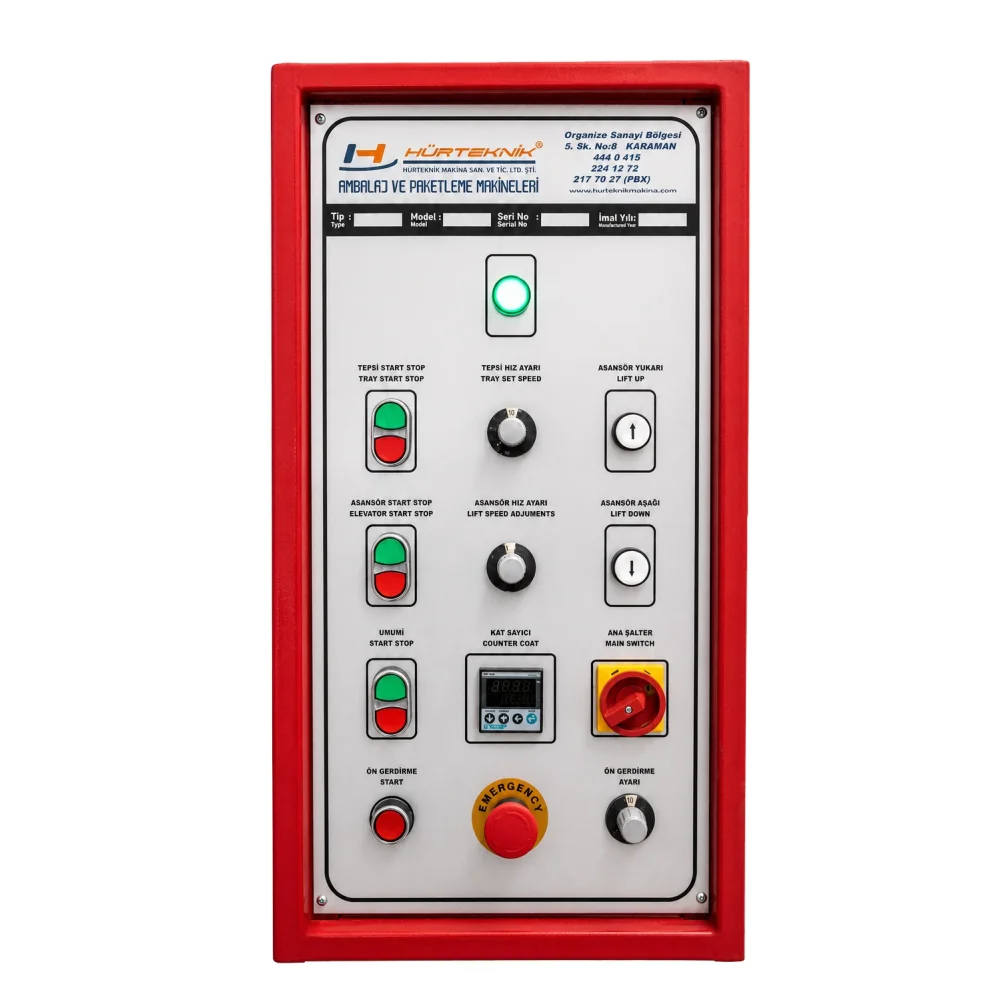

Ease of use: With PLC-controlled automation and a user-friendly panel interface, operator intervention is reduced and consistent wrapping processes are guaranteed.
Pallet Stretch Wrapping Machine Working Principle
Products placed on the pallet are wrapped by a rotating turntable or rotary motion. Thanks to the adjustable pre-stretching system, the machine optimizes film tension and tightens the stretch film around the load. As a result, products are tightly secured and the risk of slipping during transport is reduced.
Pallet Wrapping Machine Types
Manual, semi-automatic and fully automatic pallet stretch machines are available. Manual models are economical and ideal for small-scale businesses. Semi-automatic machines automatically perform wrapping after pallet placement, providing standard and safe packaging. Fully automatic machines work integrated into conveyor lines, providing maximum efficiency in high-capacity production with sensors and robotic systems. As Hürteknik, we manufacture custom solutions for different pallet sizes and load capacities in all models.
Pallet Stretch Machine Features
Durable steel body, electric pre-stretching system and PLC-supported speed control stand out. Depending on need, 360° rotating turntable or rotary arm systems are offered. Thanks to easy maintenance and maintenance-free systems, low operating cost is provided. Our pallet stretch machines come standard with an industrial-looking protective cage, emergency stop buttons and energy-efficient motors.
Pallet Stretch Wrapping Machine Usage Areas
It is used in all sectors that transport products and pallets. It ensures product safety during shipping in industries such as food, pharmaceutical, chemical, textile, automotive and furniture. For example, in the petrochemical sector, it wraps bobbins, and in logistics companies, it wraps multiple pallet loads, contributing to orderly storage.
Why Hürteknik Pallet Stretch Wrapping Solutions?
Hürteknik Makina's domestically manufactured pallet stretch machines can be manufactured in custom sizes and capacities. With our strong engineering infrastructure and flexible production capability, we offer custom designs as well as standard models. Long-lasting material, low energy consumption and reasonable cost are priorities in our products. We support the process from start to finish with after-sales maintenance, spare parts and technical support services.
Discover now: Contact us for detailed information and a price quote about our pallet stretch wrapping machine models.
