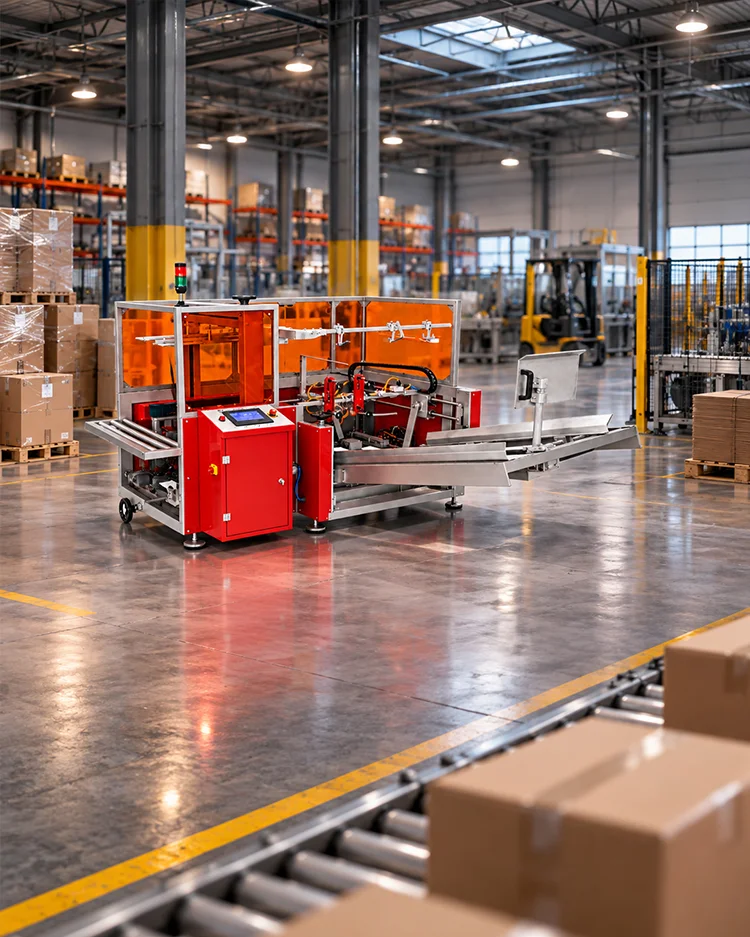

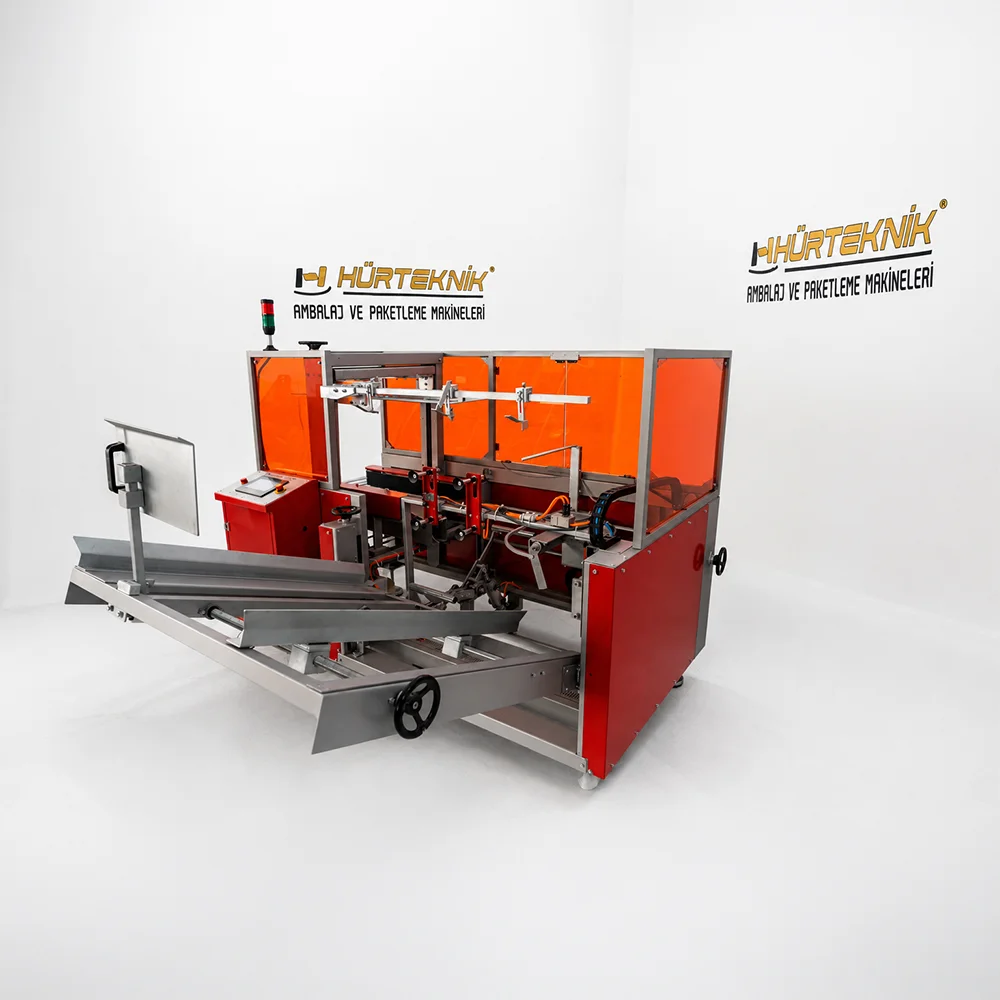

Automatic Box Preparation Machine
Üretim hatlarında hız, düzen ve zaman tasarrufu sağlayan otomatik koli hazırlama makinesi, kolilerin kısa sürede şekillendirilmesini ve bantlanmasını sağlar. Thanks to its robust body structure and adjustable measurement system, it easily adapts to parcels of different sizes. Yüksek kapasiteye sahip işletmeler için full otomatik koli hazırlama makinesi modelleri, minimum operatör müdahalesiyle maksimum verimlilik sunar. Endüstriyel paketleme çözümlerinde pratikliğiyle öne çıkan koli hazırlama makinesi, iş süreçlerini hızlandırarak üretim hattında sürekliliği garanti eder.
- Speed: 6 parcels / minute
- Height: Adjustable
- Box dimensions max: WIDTH 40, HEIGHT 40, LENGTH 40 CM
- Engine power: 2 x 0.18 kW
- Used tape width: 25 – 50 mm
- Air to be used: 6 bar
- Length of tape used: 40 – 1000 m
- Transportation: 4 swivel and braked wheels.
Technical Specifications
| Speed | 6 boxes/minute |
|---|---|
| Height | Set |
| Maximum box dimensions | Width: 40 cm - Height: 40 cm - Length: 40 cm |
| Engine power | 2 x 0.18 kW |
| Used tape width | 25 - 50mm |
| Air pressure | 6 bars |
| Tape footage used | 40 - 1000 meters |
| Transport | 4 swivel casters with brake |
What is an Automatic Case Erector & What Does It Do?
Automatic case erectors are systems that quickly open and shape flat cardboard cases into ready box form. These machines first fold the sides of the cases and perform bottom sealing with a glue gun or tape unit. As a result, the case takes shape without operator intervention.
Case Erector Working Principle
In the packaging line, flat cardboard is fed from the palletizer machine. The machine first folds the bottom flap of the case and fixes it with a glue gun or hot glue. Then it delivers the opened case to the conveyor. Top flaps are taped manually or on another machine. The entire process can be fully automatic or semi-automatic.
Advantages of the Case Erector
Operator time spent on case preparation is eliminated. Businesses with high-volume case demand can be sure that cases are prepared for hours with fully automatic models. It takes up little space, and different size adjustments are fast. Thanks to its ergonomic design, it ensures continuity in the process line.
Usage Areas of Automatic Case Erector
It is used in facilities that require high-speed case production such as e-commerce warehouses, furniture factories and white goods packaging lines. Versions that can make cases in various sizes are available. Hürteknik automatic case erectors can be integrated with complete packaging lines including taping.
