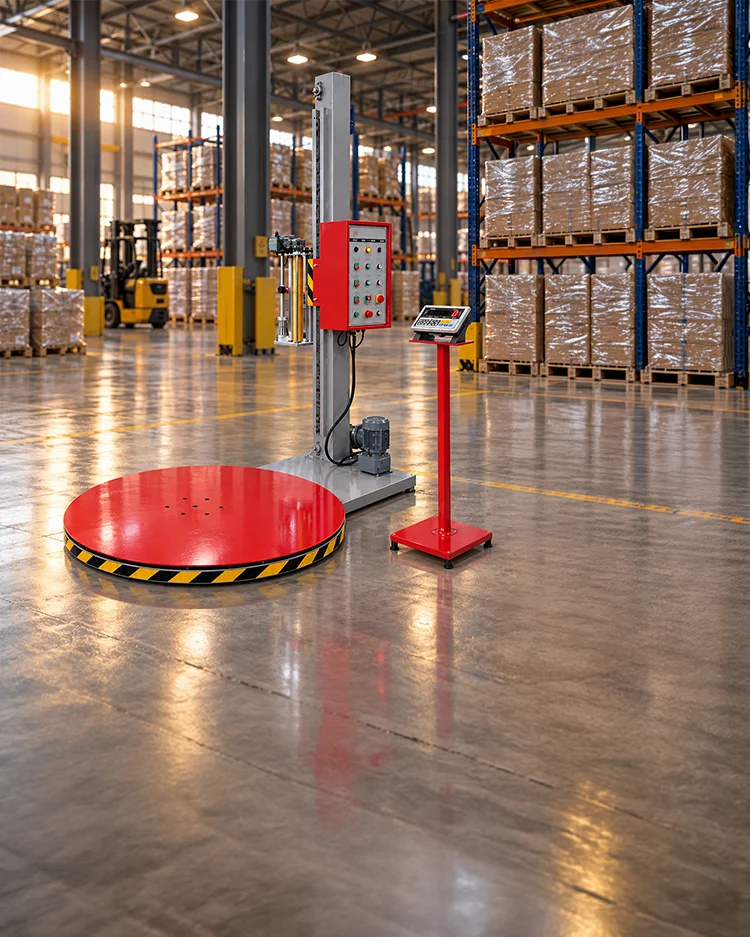

Stretch Wrapping Machine with Scale and Table
Hürteknik HSS-210T model can stretch all kinds of stretch films to the extent you want, and thanks to the scale on it, it helps you learn the weight of your products. (Cannot be used for commercial purposes). Our standard machine has a tray diameter of 150cm and a tower height of 250cm. Due to the advantage of being a manufacturer, if different sizes are requested, we can provide all kinds of customer support and put them on the production line. You can visit our website or YouTube channel for our other models.
- Rotary load capacity: 1.500 kg (OPTIONAL 2.000-2.500-3.000 KG)
- Rotary table diameter: 1.500 mm (Optional 1.650 -1.800 -2.000 -2.200 mm)
- Tower height: 2.500 mm (Optional 3.000 -3.500 mm)
- Pre-tensioning system: Motorized pre-tensioning system with electronic speed control
- Tray speed adjustment: Electronic speed controlled
- Departure and stance softening: Electronic
- Tower elevator speed adjustment: Electronic speed controlled
- Rotary table speed: 1-12 rpm
- Electricity consumption: 0.75 kw
- Film width used: 50 cm
- Automatic altitude reading: Available
Technical Specifications
| Rotating load capacity | 1.500 kg (Optional 2.000 - 2.500 - 3.000 kg) |
|---|---|
| Turntable diameter | 1.500 mm (Optional 1.650 - 1.800 - 2.000 - 2.200 mm) |
| Tower height | 2.500 mm (Optional 3.000 - 3.500 mm) |
| Pre-tensioning system | Motorized pre-tensioning system, electronic speed control |
| Tray speed adjustment | Electronic speed control |
| Takeoff and stance softening | Electronics |
| Tower elevator speed adjustment | Electronic speed control |
| Rotary table speed | 1-12 rpm |
| Electricity consumption | 0.75kW |
| Film width used | 50cm |
| Automatic altitude reading | Available |
What is a Scale Turntable Pallet Stretch Wrapping Machine & What Does It Do?
Turntable stretch wrapping machines wrap by rotating the pallet on a fixed turntable. In scale models, there is a precision scale (weight measuring device) on the pallet turntable. This way, the weight of the load can be automatically measured and checked before or after wrapping. At the same time, the turntable rotates to provide even tension distribution; this optimizes film consumption.
Working Principle of Scale Turntable Pallet Stretch Wrapping Machine
Before starting the pallet stretch film wrapping process, the operator places the pallet on the scale. When the turntable starts to rotate, the load, which remains locked on it, is wrapped by the stretching unit above. The wrapping ratio (film stretch percentage) is adjustable. As a result, it works seamlessly with films having different stretch ratios. The built-in scale provides data for legal load control or process tracking.
Prominent Features of Scale Turntable Pallet Wrapping Machine
Hürteknik scale turntable stretch machines have a standard 150 cm diameter turntable and 250 cm tower height. When larger dimensions are requested, custom production is made. Thanks to the scale system, load definition and reporting become easier. Safety measures are increased by knowing the pallet weight before transport.
Usage Areas of Scale Turntable Pallet Stretch Machines
It is suitable for pallets with critical weight such as chemicals, agricultural pesticides, construction materials. It is used in all kinds of industries where the full-size weights of products on pallets need to be known. It also provides an advantage for inventory tracking in logistics warehouses.
