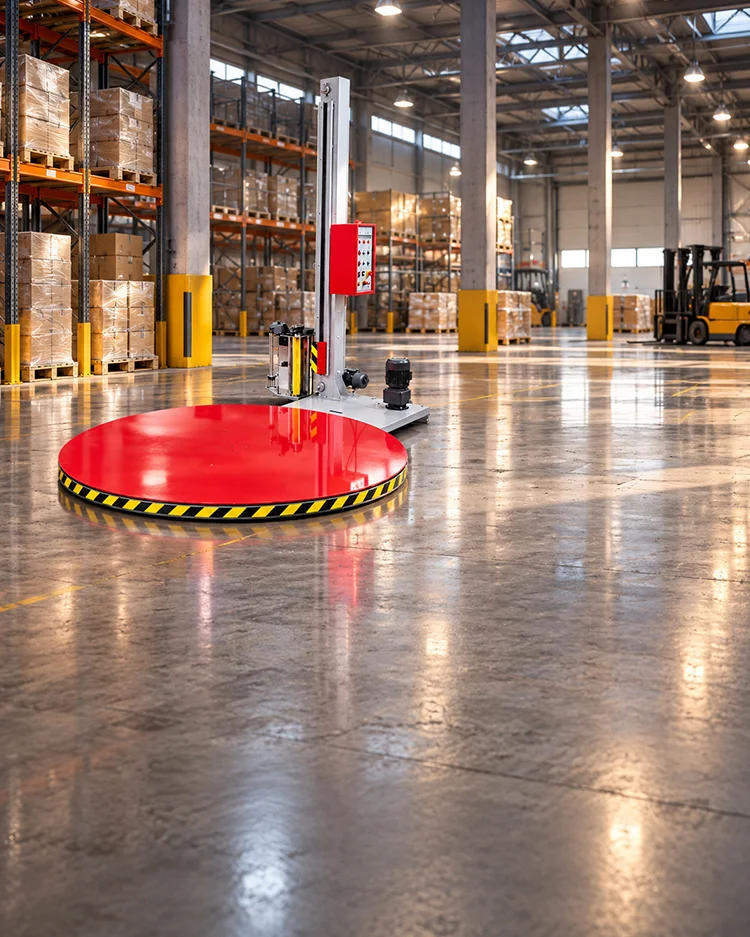

Large Table Pallet Stretch Wrapping Machine
Hürteknik HSS-210B model can stretch all kinds of stretch films to the extent you want. The package table stretching machine, which is produced with a large table according to customer requests, undertakes the task of stretching palletized products larger than the euro pallet size. Our standard machine has a tray diameter of 220cm and a tower height of 250cm. Due to the advantage of being a manufacturer, if different sizes are requested, we can provide all kinds of customer support and put them on the production line. You can visit our website or YouTube channel for our other models.
- Rotary load capacity: 1.500 kg (OPTIONAL 2.000-2.500-3.000 KG)
- Rotary table diameter: 2200 mm (Optional 1.650 -1.800 -2.000 -2.200 mm)
- Tower height: 2.500 mm (Optional 3.000 -3.500 mm)
- Pre-tensioning system: Motorized pre-tensioning system with electronic speed control
- Tray speed adjustment: Electronic speed controlled
- Departure and stance softening: Electronic
- Tower elevator speed adjustment: Electronic speed controlled
- Rotary table speed: 1-12 rpm
- Electricity consumption: 0.75 kw
- Film width used: 50 cm
- Automatic altitude reading: Available
Technical Specifications
| Rotating load capacity | 1.500 kg (Optional 2.000 - 2.500 - 3.000 kg) |
|---|---|
| Turntable diameter | 2.200 mm (Optional 1.650 - 1.800 - 2.000 - 2.200 mm) |
| Tower height | 2.500 mm (Optional 3.000 - 3.500 mm) |
| Pre-tensioning system | Motorized pre-tensioning system, electronic speed control |
| Tray speed adjustment | Electronic speed control |
| Takeoff and stance softening | Electronics |
| Tower elevator speed adjustment | Electronic speed control |
| Rotary table speed | 1-12 rpm |
| Electricity consumption | 0.75kW |
| Film width used | 50cm |
| Automatic altitude reading | Available |
What is a Large Turntable Pallet Stretch Wrapping Machine & What Does It Do?
Large turntable stretch wrapping machines can wrap pallets wider than the Euro pallet (120×80 cm) size. These machines, specially designed with a wide turntable, make it possible to wrap heavy and large-volume pallets as well. Thus, no additional loading or cutting process is needed for products on wide pallets.
Large Turntable Pallet Wrapping Machine Working Principle
Unlike standard machines, the turntable diameter has been enlarged up to 220 cm. The pallet is again wrapped by the rotating turntable or rotary arm. Top stretching systems function as in normal pallet models. Wide loads in limited spaces are safely secured with these machines.
Large Turntable Pallet Stretch Wrapping Machine Features
In Hürteknik large turntable models, the standard turntable diameter is 220 cm and the tower height is 250 cm. All mechanisms are reinforced for heavy load carrying. It is suitable for working together with a loading ramp or forklift preparation for wide pallets. Thanks to the special design, we can manufacture according to pallets of different sizes.
Usage Areas of Large Turntable Pallet Stretch Wrapping Machines
It is preferred in sectors such as wood panels, plastic tanks, ready-mixed concrete blocks and other large-volume materials larger than Euro pallets; large agricultural pesticide barrels in agriculture or large packaged chemical pallets.
